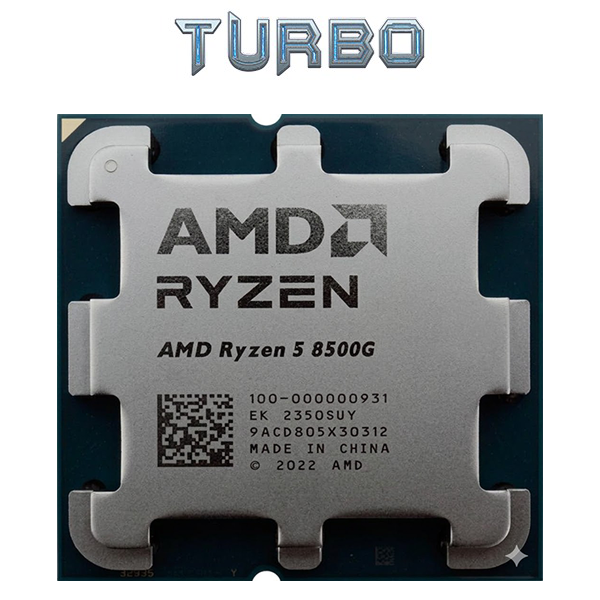

AMD Ryzen 5 8500G CPU

1. AMD Ryzen 5 8500G Detailed Specifications

• Processor Family: AMD Ryzen 5 (8000 G-Series APU with Radeon Graphics)

• CPU Architecture: Zen 4 + Zen 4c (Hybrid Architecture)

• Socket: AM5

• Process Technology: TSMC 4nm FinFET

• Total Cores: 6 Cores

  • 2x Performance Cores (Zen 4)

  • 4x Efficiency Cores (Zen 4c)

• Total Threads: 12 Threads

• Base Clock Speed: 3.5 GHz

• Maximum Boost Clock: Up to 5.0 GHz

• L2 Cache: 6 MB

• L3 Cache: 16 MB

• Default TDP: 65W (AMD Configurable TDP: 45-65W)

• Max. Operating Temperature (Tjmax): 95°C

Integrated Graphics Specifications

• Graphics Model: AMD Radeon 740M

• Graphics Core Count: 4 CUs (Compute Units)

• Graphics Frequency: 2800 MHz

• DirectX Support: 12 Ultimate
