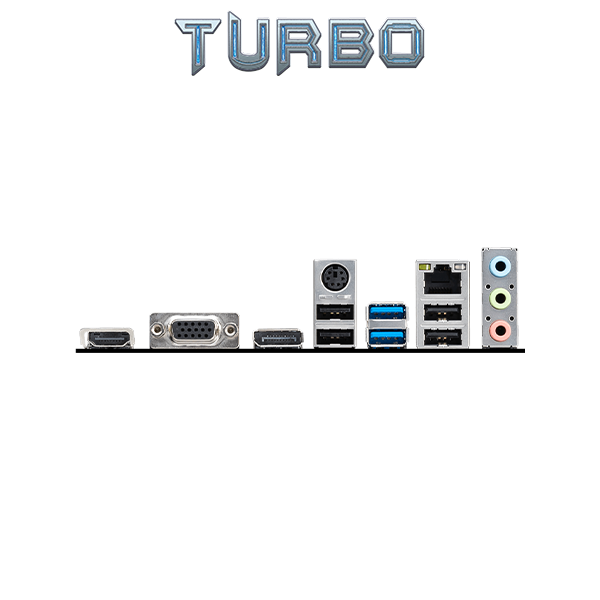

MSI PRO H610M-G DDR4 Motherboard M-ATX - Intel 12th

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

PROCESSOR

Supports 12th/ 13th Gen Intel^® Core™ Processors, Pentium^® Gold and Celeron^® Processors¹

Processor socket LGA1700

1.     Please go to www.msi.com to get the newest support status as new processors are released.

See supported processors

CHIPSET

Intel^® H610 Chipset

MEMORY

·         2x DDR4 memory slots, support up to 64GB¹

·         Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)

·         Supports Dual-Channel mode

·         Supports non-ECC, un-buffered memory

1.     Please refer to www.msi.com for more information on compatible memory.

See supported memory

EXPANSION SLOT

·         1x PCIe x16 slot (From CPU)

o    Supports up to PCIe 4.0 x16

·         1x PCIe x1 slot

o    Supports PCIe 3.0 x1

·         1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1)

ONBOARD GRAPHICS

·         1x HDMI™ 2.1 with HDR port, supports a maximum resolution of 4K 60Hz ^1 2

·         1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz¹

·         x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz^1 2

1.     Available only on processors featuring integrated graphics.

2.     Graphics specifications may vary depending on the CPU installed.

SATA PORTS

·         4x SATA 6Gb/s ports¹

1.     * SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

M.2 SSD SLOT

·         1x M.2 slot (Key M, from chipset)¹

o    Supports up to PCIe 3.0 x4

o    Supports up to SATA 6Gb/s

o    Supports 2242/ 2260/ 2280 storage devices

o    Supports Intel^® Smart Response Technology for Intel Core™ processors

1.     SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot

USB

Intel^® H610 Chipset

·         4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)

·         6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)

AUDIO

Realtek^® ALC892/ ALC897 Codec

·         7.1-Channel High Definition Audio

LAN

·         1x Intel^® I219V 1Gbps LAN controller

POWER CONNECTORS

·         1x 24-pin ATX main power connector

·         1x 8-pin ATX 12V power connector

FAN CONNECTORS

·         1x 4-pin CPU fan connector

·         1x 4-pin system fan connector

SYSTEM CONNECTORS

·         1x Front panel audio connector

·         2x System panel connectors

·         1x Chassis Intrusion connector
