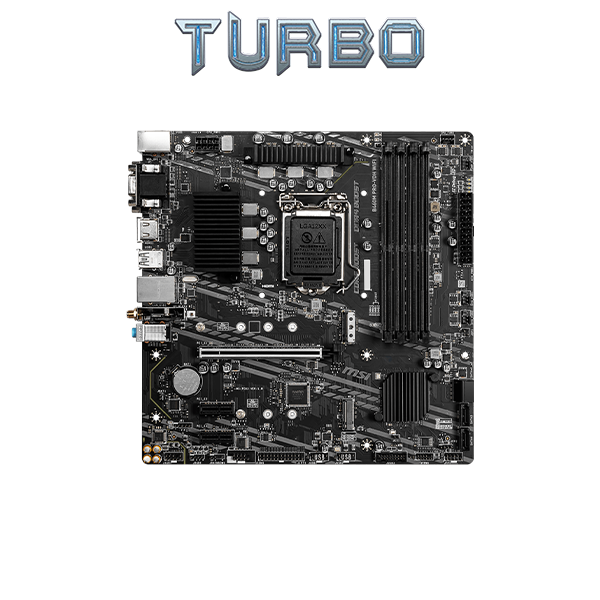

MSI B460M PRO-VDH WiFi ProSeries Motherboard (mATX, 10th Gen Intel Core, LGA 1200 Socket, DDR4, Dual M.2 Slots, USB 3.2 Gen 1, 2.5G LAN, D-SUB/DVI/HDMI, Wi-Fi)

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

CPU

Supports 10th Gen Intel^® Core^™ and Pentium^® Gold / Celeron^® processors for LGA 1200 socket. ^1 2

1.    Please go to intel.com for compatibility information.

2.    Onboard graphics output are disabled when using the F SKU processors.

CHIPSET

Intel^® B460 Chipset

MEMORY

·         4x DDR4 memory slots supporting up 128GB ¹

·         Intel^® Core^™ i7/ i9

o    Support DDR4-2933 Memory (Max.)

·         Intel^® Core^™ i5 (Below)

o    Supports DDR4-2666 Memory (Max.)

·         Supports Dual-Channel mode

·         Supports non-ECC, un-buffered memory

·         Supports Intel^® Extreme Memory Profile (XMP)

See supported memory

·

1.    Please refer www.msi.com for more information on compatible memory.

EXPANSION SLOT

·         1x PCIe 3.0 x16 slot (from CPU)

·         2x PCIe x1 slots (from PCH)

ONBOARD GRAPHICS

·         1x HDMI™ port, supporting a maximum resolution of 4096x2160 @ 30Hz, 2560x1600 @ 60Hz

·         1x DVI-D port, supports a maximum resolution of 1920x1200 @ 60Hz

·         1x VGA port, supports a maximum resolution of 2048x1536 @ 50Hz, 2048x1280 @ 60Hz, 1920x1200 @ 60Hz

AUDIO

Realtek^® ALC892/ALC897 Codec

·         7.1-Channel High Definition Audio

LAN

1x Realtek^® RTL8111H Gigabit LAN Controller

STORAGE

Intel^® B460 Chipset

·         4x SATA 6Gb/s ports ¹

·         2x M.2 slots (Key M)

o    M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices ¹

o    M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices

o    Intel^® Optane^™ Memory Ready for the M2_2 slot only ²

o    Supports Intel^® Smart Response Technology for Intel Core™ processors

1.    SATA1 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

2.    Before using Intel^® Optane^™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID

Intel^® B460 Chipset

·         Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

WIRELESS LAN & BLUETOOTH^®

Intel^® 3168NGW

·         The Wireless module is pre-installed in the M.2 (Key-E) slot

·         Supports 802.11 a/ b/ g/ n/ ac

·         Supports Bluetooth^® 4.2

USB

Intel^® B460 Chipset

·
