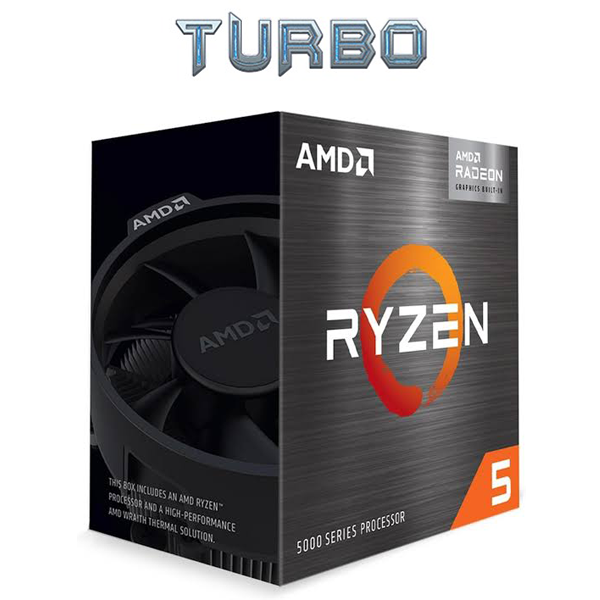

AMD Ryzen 5 5600 CPU

**AMD Ryzen™ 5 5600**

**Brand:** AMD

**Model:** Ryzen 5 5600

**Generation:** 4th Gen (Zen 3)

**Code Name:** Vermeer

---

**Core Architecture:**

Total Cores: 6

Total Threads: 12

---

**Clock Speeds:**

Max Boost Clock: Up to 4.4 GHz

Base Clock: 3.5 GHz

---

**Cache:**

Total L3 Cache: 32 MB

L2 Cache: 3 MB (512 KB per core)

---

**Integrated Graphics:**

Integrated Graphics: No (requires discrete graphics card)

---

**Memory Support:**

Max Memory Size: 128 GB

Memory Types: DDR4-3200 (officially supported)

Memory Channels: 2 (Dual Channel)

ECC Memory Support: Yes (with supported motherboard, not officially validated)

---

**PCI Express:**

PCI Express Revision: 4.0

Max PCI Express Lanes: 24

- 16 lanes for GPU (PCIe 4.0)

- 4 lanes for primary SSD (PCIe 4.0)

- 4 lanes for chipset (PCIe 4.0)

---

**Power Specifications:**

Default TDP (Thermal Design Power): 65W

Max Operating Power: Approximately 88W under full load

---

**Thermal Specifications:**

Max Operating Temperature (Tjmax): 95°C

---

**Socket Compatibility:**

Socket Type: AM4

Compatible Chipsets: 300 series, 400 series, 500 series (A320, B350, B450, X370, X470, B550, X570, etc.)

Note: Check motherboard BIOS compatibility (may require update for 300/400 series)

---

**Advanced Technologies:**

Precision Boost 2: Yes

Precision Boost Overdrive (PBO): Yes (with supported motherboard)

Extended Frequency Range (XFR): Yes

AMD SenseMI Technology: Yes

AES Instructions: Yes

AVX2 Instructions: Yes

Virtualization (AMD-V): Yes

---

**Security Features:**

AMD Memory Guard: No

Secure Memory Encryption: No

Secure Encrypted Virtualization: No

---

**Overclocking:**

Unlocked Multiplier: Yes (allows overclocking on B-series and X-series motherboards)

Max Overclock: Approximately 4.5-4.7 GHz (depending on cooling and silicon quality)

---

**What's in the Box (Retail):**

AMD Ryzen 5 5600 processor

Installation guide

AMD case badge

---

**Best For:**

Gaming PC (with dedicated GPU)

Productivity and multitasking

1080p and 1440p gaming

Content creation (video editing, photo editing)

Streaming

Office work

Budget to mid-range builds

---

**Gaming Performance (with dedicated GPU):**

- Excellent 1080p gaming performance

- Great 1440p gaming performance

- Pairs well with GPUs up to RTX 4070 / RX 7700 XT

- Bottleneck may occur with high-end GPUs like RTX 4090 at 1080p

---

**Important Notes:**

1. No integrated graphics - requires discrete GPU

2. For AM4 socket only (not AM5)

3. No DDR5 memory support (DDR4 only)

4. Older architecture than Ryzen 7000 series but still very capable

5. Great value CPU for budget gaming
