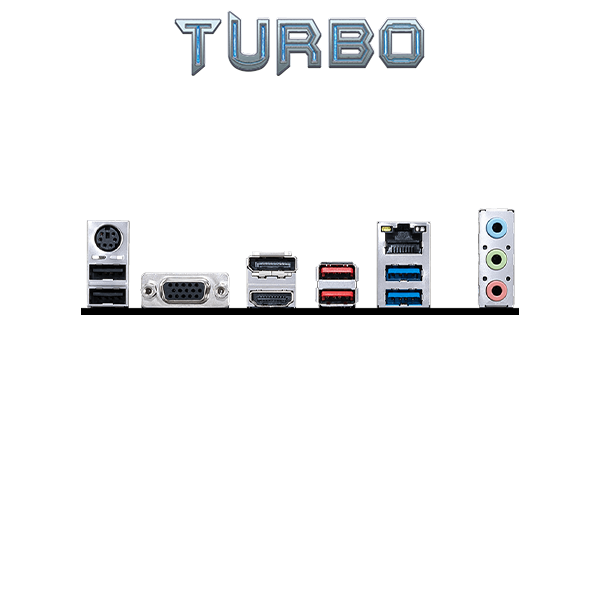

MSI B560M PRO-VDH (mATX, 11th/10th Gen Intel Core, LGA 1200 Socket, DDR4, PCIe 4, CFX, M.2 Slots, USB 3.2, 2.5G LAN, DP/HDMI)

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

CPU

Supports 10th Gen Intel^® Core^™ Processors, 11th Gen Intel^® Core^™ Processors, Pentium^® Gold and Celeron^® Processors¹

Processor socket LGA1200

1.    Please go to intel.com for compatibility information

CHIPSET

Intel^® B560 chipset

MEMORY

·         4x DDR4 memory slots, support up to 128GB¹

·         Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel^® CPU (by JEDEC & POR)

·         Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel^® CPU (by JEDEC & POR)

·         Max overclocking frequency:

o    1DPC 1R Max speed up to 5066 MHz

o    1DPC 2R Max speed up to 4600+ MHz

o    2DPC 1R Max speed up to 4266+ MHz

o    2DPC 2R Max speed up to 4000+ MHz

·         Supports Dual-Channel mode

·         Supports non-ECC, un-buffered memory

·         Supports Intel^® Extreme Memory Profile (XMP)

1.    Please refer www.msi.com for more information on compatible memory.

See supported memory

EXPANSION SLOT

·         1x PCIe x16 slot (From CPU)

o    PCI_E1 (From CPU)

§  Support up to PCIe 4.0 for 11th Gen Intel^® CPU

§  Support up to PCIe 3.0 for 10th Gen Intel^® CPU

·         2x PCIe 3.0 x1 slots (From B560 chpiset)

ONBOARD GRAPHICS

·         1x HDMI™ 2.0b with HDR port, supports a maximum resolution of 4K 60Hz¹²

·         1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz¹²

·         1x VGA port, supports the maximum resolutions of 2048x1536 @50Hz, 2048x1280 @60Hz and 1920x1200 @60Hz¹²

1.    Available only on processors featuring integrated graphics.

2.    Graphics specifications may vary depending on the CPU installed.

AUDIO

Realtek^® AL897 Codec

·         7.1-Channel High Definition Audio

LAN

1x Realtek^® 8125B 2.5Gbps LAN controller

STORAGE

·         6x SATA 6Gb/s ports (From B560 chipset)

·         2x M.2 slot (Key M)

o    M2_1 slot

§  Supports up to PCIe 4.0 x4 for 11th Gen Intel^® CPU (From CPU)

§  Supports up to PCIe 3.0 x4 for 10th Gen Intel^® CPU (From B560 chipset)

§  Supports up to SATA 6Gb/s (From B560 Chipset)¹

§  Supports 2242/ 2260/ 2280/ 22110 storage devices

o    M2_2 slot² (from B560 chipset)

§  Supports up to PCIe 3.0 x4

§  Supports 2242/ 2260/ 2280 storage devices

§  &l
