**Model Name**

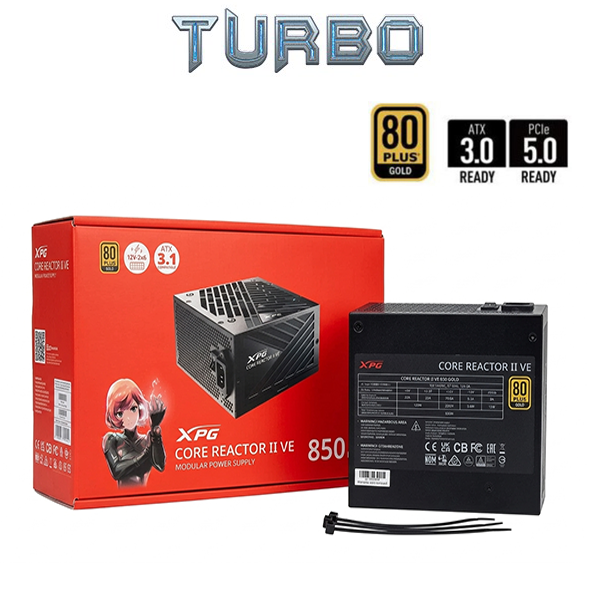

XPG CORE REACTOR II VE
**Total Power**
850 Watts
**Efficiency Certification**
80 PLUS Gold (up to 89% efficiency)
**Cybenetics Certifications**
ETA Gold / LAMBDA Platinum (for noise)
**ATX Version**
Intel ATX 12V v3.1 Compatible
**Form Factor**
ATX
**Cable Management**
Fully Modular
**Dimensions (L x W x H)**
140 mm x 150 mm x 86 mm
**Weight (Unit Only)**
Approximately 1.45 kg
**AC Input Range**
100V - 240V (Full Range)
**AC Input Frequency**
47 Hz - 63 Hz
**AC Input Current**
12A - 6A
**Power Factor Correction**
Active PFC (>0.99 PF)
**Efficiency (Typical)**
Up to 87% at full load
**Operating Temperature**
0°C - 40°C
**Hold-Up Time**
>15ms (surpasses Intel specifications)
**Peak Power Excursion**
Up to 235% (1997W for 100µs)
**Protections**
OVP / OPP / SCP / OCP / UVP / OTP / NLO / SIP (8 industrial protections)
**Cooling Type**
Active
**Fan Size**
120 mm x 120 mm x 25 mm
**Fan Bearing**
Fluid Dynamic Bearing (FDB)
**Fan Speed**
2400 RPM
**Noise Certification**
Cybenetics LAMBDA Standard ++
**+12V Rail Output**
70.8A (single rail)
**+5V & +3.3V Output**
22A each (combined 120W)
**Motherboard Connector (20+4-pin)**
1 (650 mm cable length)
**EPS/CPU Connector (4+4-pin)**
2 (750 mm cable length)
**12V-2x6 Connector (PCIe 5.1)**
1 (600W rated, 600 mm cable length)
**PCI-E Connector (6+2-pin)**
3 (550 mm cable length)
**SATA Connector**
6 (900 mm total length / daisy-chained)
**Molex (4-pin) Peripheral Connector**
2 (950 mm total length)
