GIGABYTE B550M S2H Ultra Durable Motherboard with Pure Digital VRM Solution

·         CPU

1.     AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors

(Please refer "CPU Support List" for more information.)

·         Chipset

1.     AMD B550

·         Memory

1.     2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

2.     Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

3.     Dual channel memory architecture

4.     Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
* ECC memory (ECC mode) support varies by CPU

5.     Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

6.     Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

·         Onboard Graphics

Integrated Graphics Processor:

1.     1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

2.     1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.

3.     1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Support for up to 3 displays at the same time
Maximum shared memory of 16 GB

·         Audio

1.     Realtek^® Audio codec

2.     High Definition Audio

3.     2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.

·         LAN

1.     Realtek^® GbE LAN chip (1000 Mbit/100 Mbit)

·         Expansion Slots

1 x PCI Express x16 slot, integrated in the CPU:

1.     AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode

2.     AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support PCIe 3.0 x16 mode

2 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2), integrated in the Chipset:

3.     Supporting PCIe 3.0 x1 mode

·         Storage Interface

1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280 SSDs:

1.     AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs

2.     AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs

4 x SATA 6Gb/s connectors, integrated in the Chipset:

3.     Support for RAID 0, RAID 1, and RAID 10

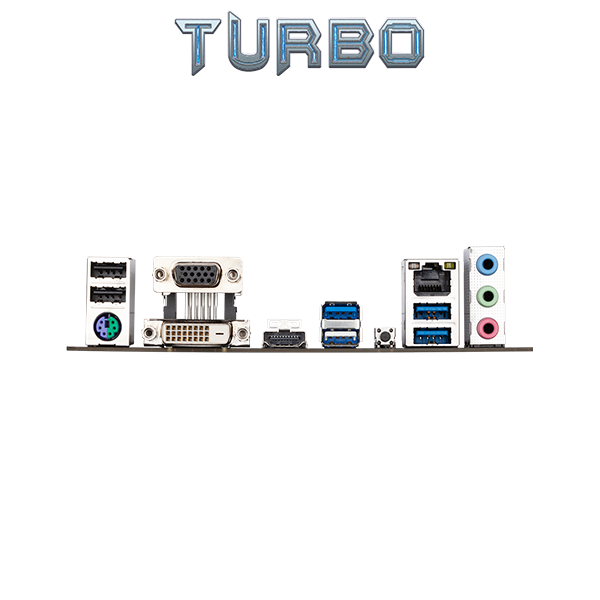

·         USB

Integrated in the CPU:

1.     4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

2.     2 x USB 3.2 Gen 1 ports available through the internal USB headers

3.     4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB headers)

·         Internal I/O Connectors

1.     1 x 24-pin ATX main power connector

2.     1 x 8-pin ATX 12V power connector

3.     1 x CPU fan header

4.     2 x system fan headers

5.     1 x addressable LED strip header

6.     1 x RGB LED strip header

7.     1 x M.2 Socket 3 connector

8.     4 x SATA 6Gb/s connectors

9.     1 x front panel header

10.                        1 x front panel audio header

11.                        1 x speaker header

12.                        1 x USB 3.2 Gen 1 header

13.                        1 x USB 2.0/1.1 header

14.                        1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

15.                        1 x serial port header
