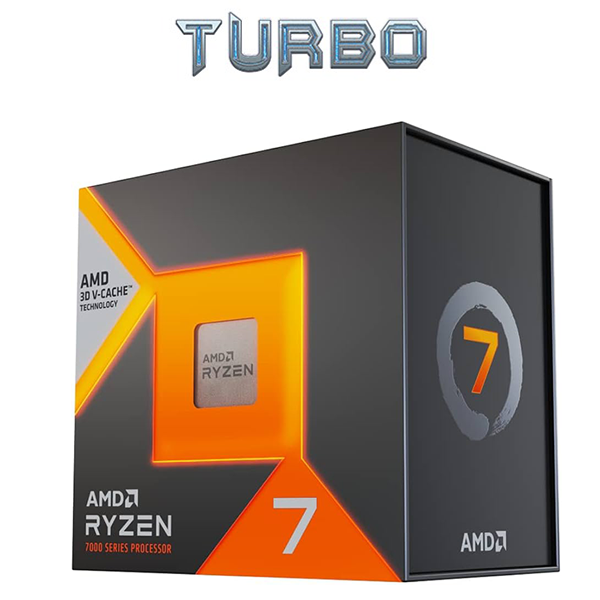

Amd Ryzen 7 7800X3D CPU Box

AMD Ryzen 7 7800X3D** processor:

---

**AMD Ryzen 7 7800X3D**

**Brand:** AMD

**Model:** Ryzen 7 7800X3D

**Generation:** Ryzen 7000 Series

**Codename:** Raphael

**Platform:** AM5

---

**Core Architecture:**

Total Cores: 8

Performance Cores: 8

Total Threads: 16

Core Design: Zen 4 (all performance cores, no efficiency cores)

---

**Clock Speeds:**

Max Boost Clock: Up to 5.0 GHz

Base Clock: 4.2 GHz

All-Core Boost: ~4.8-5.0 GHz (depending on cooling)

---

**Cache:**

Total L3 Cache: 96 MB (3D V-Cache)

L2 Cache: 8 MB (1 MB per core)

L1 Cache: 512 KB (64 KB per core)

**Note:** The 7800X3D features AMD's 3D V-Cache technology, stacking an additional 64 MB of L3 cache on top of the standard 32 MB for a total of 96 MB.

---

**Memory Support:**

Max Memory Size: 128 GB

Memory Types: DDR5 only

Memory Speed: Up to DDR5-5200 (native) / Up to DDR5-6000+ (overclocked)

Max Memory Channels: 2 (Dual Channel)

ECC Memory Support: Yes (with supported motherboard)

---

**PCI Express:**

PCI Express Revision: 5.0

Max PCI Express Lanes: 28

- 24 lanes for GPU and storage (PCIe 5.0)

- 4 lanes for chipset (PCIe 4.0)

---

**Integrated Graphics:**

Integrated GPU: Yes (AMD Radeon Graphics)

GPU Model: RDNA 2-based (2 compute units)

GPU Clock: 400 MHz base / 2200 MHz boost

Output Support: HDMI 2.1, DisplayPort 2.0

Use Case: Basic display output, not for gaming

---

**Power Specifications:**

Default TDP: 120W

PPT (Package Power Tracking) Limit: 162W

Typical Gaming Power Draw: 50-80W

Max Full Load Power Draw: ~85-90W

**Note:** Very power efficient despite high gaming performance.

---

**Thermal Specifications:**

Max Operating Temperature (Tjmax): 89°C

**Note:** Lower than standard Ryzen 7000 CPUs (95°C) due to 3D V-Cache sensitivity.

---

**Socket Compatibility:**

Socket Type: AM5 (LGA 1718)

Compatible Chipsets: X670E, X670, B650E, B650, A620,B850,x870

---

**Advanced Technologies:**

AMD 3D V-Cache Technology: Yes (96 MB total L3 cache)

AMD Precision Boost 2: Yes

AMD Precision Boost Overdrive (PBO): Yes

AMD Curve Optimizer: Yes

AMD EXPO (Extended Profiles for Overclocking): Yes

AMD Ryzen Master Software: Yes

AMD PRO Technologies: No

---

**Security Features:**

AMD Memory Guard: No

AMD Secure Processor: Yes

Microsoft Pluton Support: Yes (with supported motherboards)

---

**What's in the Box:**

AMD Ryzen 7 7800X3D Processor

AMD Ryzen Case Badge

User Manual

**Note:** No cooler included.

---

**Gaming Performance Notes:**

The 7800X3D is considered the **best gaming CPU available** as of its release, often beating much more expensive Intel and AMD processors due to the 96 MB L3 cache.

---

**Ideal For:**

High-end gaming (best-in-class gaming performance)

Competitive esports gaming

Gaming + streaming
